High Voltage Connector arrow_drop_down

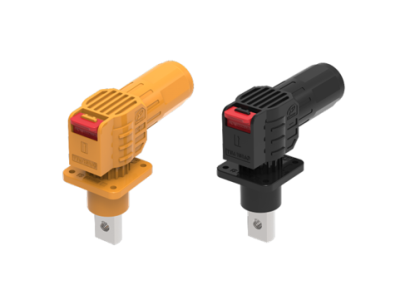

  • ESC-HP Series (회전 불가)

    3

    Specifications

    • Rated Voltage
      1500V DC
    • Rated current
      80-400A
    • IP Rating
      IP67 (Mated)
    • Temperature Range
      30K
    • Applicable Cable
      80A (for 16mm²)
      120A (for 25mm²)
      150A (for 35mm²)
      200A (for 50mm²)
      250A (for 70mm²)
      300A (for 95mm²)
      400A (for 120mm²)

  • ESC-HPB Series (360도 회전)

    2

    Specifications

    • Rated Voltage
      1500V DC
    • Rated current
      150~400A
    • IP Rating
      IP67 (Mated)
    • Temperature Range
      45K
    • Applicable Cable
      150A (for 35mm²)
      200A (for 50mm²)
      250A (for 70mm²)
      300A (for 95mm²)
      400A (for 120mm²)

  • ESC-TB Series (ESS Connector)

    1

    Specifications

    • Rated Voltage
      800V DC, 1500V DC
    • Rated current
      200-350A
    • IP Rating
      IP20
    • Temperature Range
      45K
    • Applicable Cable
      200A (for 50mm²)
      250A (for 70mm²)
      300A (for 95mm²)
      350A (for 120mm²)
